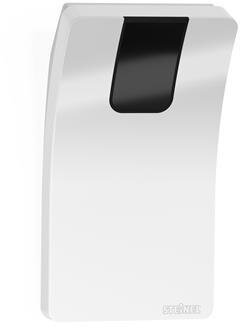

Steinel Human sensor HPD2 IP

Registers people in 5 individually adjustable zones! Worldwide unique optical sensor that recognizes and counts both seated and standing people in up to five precisely definable registration zones. 110 ° angle of coverage with a maximum range of 10 m at a maximum mounting height of 6 m. The integrated, state-of-the-art image recognition processes 150,000 positive images and 7 million negative images in real time. Thanks to the recognition of the actual use of space, it is ideal for 'meeting-room management' or for determining free office workplaces in 'flex desk management'. Specifications:
Article number: 033965
Barcode: 4007841033965
Brand: STEINEL
Net weight (kg): 0.342
Free animal zone: No.
Antibacterial: 235; le Treatment: No.
Override switch: No.
Colour White
Connection method: Other
Constant light control: Yes
Creep-under protection: Yes
Degree of protection (IP): IP20
Depth: 52 mm
Reach angle horizontal: 110 - 110 &: 176;
Diameter range on the floor: 20 m
Dimming function with dimmer insert: No.
Forced shutdown: No.
Forced arming: No.
Halogen Free: Yes
Height: 52 mm
Material: Plastic
Quality class: Thermoplastic
Max. presence range: 20 m &: 178;
Max. range frontal: 10 m
Max. range sideways: 10 m
Execution: Other
Mounting method: Other
Connectable to network: No.
Nom. voltage: 55 V.
Number of switching zones: 10
Optimal mounting height: 2.8 m
RAL Number (similar): 9010
Remote control: No.
Response brightness adjustable: No.
Response sensitivity adjustable: Yes
Recorder type: Camera
Staircase monitoring: No.
Auxiliary unit input: No.
Suitable for ceiling mounting: No.
C-Tax: No.
Suitable for wall mounting: Yes
Suitable for wireless: No.
Surface protection: Other
Self-learning function for response brightness: No.
Temperature: 0 - 40 &: 176; C
Transparent: No.
Voltage type: DC
Width: 86 mm
With alarm function: No.
With DALI interface: No.
With remote control: No.
With signal unit: Yes
