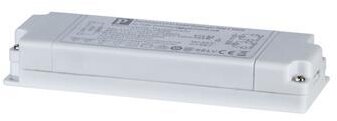

Paulmann VDE Euro Flat Electron. transformer max.35-105W

Flat transformers are particularly flat and ideal for suspended ceilings due to their height of just 24 mm. Specifications:
Item number: 97782
Barcode: 4000870977828
Brand: PAULMANN
Net weight (kg): 0.173
Built-in: No
Colour White
Primary side connection type: Other
Connection type secondary side: Screw connection
Degree of Protection (NEMA): Other
Diameter: 0mm
Dimmable 0-10 V: No
Dimmable 1-10 V: No
Dimmable DALI: No
Dimmable DMX: No
Dimmable DSI: No
Dimmable GPRS: No
Dimmable LineSwitch: No
Dimmable mains voltage modulation: No
Dimming manufacturer specific: No
Dimmable trailing edge: Yes
Dimmable leading edge: Yes
Dimmable with potentiometer (integrated): No
Dimming programmable: Yes
Dimmable RF: No
Dimmable Sine Wave Reduction: No
Dimmable Touch and Dim: No
Dimmable with push button: No
Dimmable Zigbee: No
Height: 147mm
Input voltage: 230 - 230 V
Length: 24mm
Housing material: Plastic
Not dimmable: No
Number of outputs (pairs): 1
Output voltage: 12 - 12 V
Overload protection: Yes
Over-temperature protection: Yes
Power: 105 - 105 W
Safety transformer: No
Short-circuit protection: No
Construction: No
Transformer type: Electronic transformer
Width: 50mm
With secondary circuit breaker: No
Instruction manual:
